1. 项目搭建

小布旅购助手 项目搭建:全局配置和一级路由配置,底部导航对应页面 title 配置。

① 通过 js 基础模版创建项目,选择自己注册好的小程序。

② 删除 utils 目录、清空 pages 目录

③ 清空 app.js

1
2
3
4
5
// app.js
App({
onLaunch() {
},
})

④ 定义底部选项卡,通过 app.json - pages

1
2
3
4
5
6
"pages": [
"pages/home/home",
"pages/category/category",
"pages/shopcar/shopcar",
"pages/center/center"
],

⑤ 配置顶部颜色和信息,通过 app.json -window

1
2
3
4
5
6
"window": {
"navigationBarTextStyle": "white",
"navigationBarTitleText": "小布旅购助手",
"navigationBarBackgroundColor": "#14c145", //微信绿
"backgroundTextStyle": "light"
},

⑥ 配置底部选项卡高亮图片切换(阿里iconfont矢量图标),通过 app.json - tabBar

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
"tabBar": {
"list": [
{
"pagePath": "pages/home/home",
"text": "首页",
"iconPath": "images/home.png",
"selectedIconPath": "images/home_light.png"
},
{
"pagePath": "pages/category/category",
"text": "分类",
"iconPath": "images/category.png",
"selectedIconPath": "images/category_light.png"
},
{
"pagePath": "pages/shopcar/shopcar",
"text": "购物车",
"iconPath": "images/shopcar.png",
"selectedIconPath": "images/shopcar_light.png"
},
{
"pagePath": "pages/center/center",
"text": "我的",
"iconPath": "images/center.png",
"selectedIconPath": "images/center_light.png"
}
]
},

image-20260203140942878

2. restful 接口

json-server 通过 json 文件 mock 数据,模拟 restful 接口。

参考文档:https://rtool.cn/jsonserver/docs/introduction

模拟数据:json-server -w db.json -p 5000

请求地址:http://localhost:5000/xxx

3. request 封装+ loading

request.js 封装 Promise 风格请求方式工具,可以很方便链式调用。

  • import request from '[path]/utils/request' JS 模块导入方式

wx.showLoading | wx.hideLoading 显示 或 隐藏请求的 loading

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
// /utils/request.js 封装
// 基地址
var BASE_URL = "http://localhost:5000"
function request(params) {
// wx.showLoading: https://developers.weixin.qq.com/miniprogram/dev/api/ui/interaction/wx.showLoading.html
// 显示 loading
wx.showLoading({ title: '正在加载中' })
return new Promise((resolve, reject) => {
wx.request({
...params, //url, method, header, body...
url: BASE_URL + params.url, //url 参数同名覆盖
success: (res) => {
resolve(res.data)
},
fail: (err) => {
reject(err)
},
complete: () => {
// 隐藏 loading(complete 不论成功与失败)
wx.hideLoading({ success: (res) => { } })
}
})
})
}

module.exports = request
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
import request from '../../utils/request'
// pages/home/home.js
Page({
data: {},
handleGetTap() {
request({ url: "/users" }).then((res) => {
console.log(res);
})
},
handlePostTap() {
request({ url: '/users' }).then(res => {
console.log(res);
}).catch(err => {
console.error(err);
})
},
...
})

image-20260203140154875

4. 首页

【使用扩展组件】

  1. 初始化 npm:npm init - 初始化生成 package.json

  2. 安装 sticky:npm i @miniprogram-component-plus/sticky

  3. 构建 npm:【工具】-【构建npm】 (否则引入会报错)

  4. 引入 sticky:https://developers.weixin.qq.com/miniprogram/dev/platform-capabilities/extended/component-plus/sticky.html

-> 375宽度的机型上不生效,原因未知,可能是组件库BUG(验证过边缘像素计算临界值问题)

微信团队扩展组件:https://developers.weixin.qq.com/miniprogram/dev/platform-capabilities/extended/component-plus/

轮播

首页轮播:优化request封装同时暴露基地址、轮播组件中拼接基地址、基地址挂载到全局对象的方式和使用

utils/request.js

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
// /utils/request.js
const BASE_URL = "http://localhost:5000";
function request(params) {
// wx.showLoading: https://developers.weixin.qq.com/miniprogram/dev/api/ui/interaction/wx.showLoading.html
// 显示 loading
wx.showLoading({ title: '正在加载中' })
return new Promise((resolve, reject) => {
wx.request({
...params, //url, method, header, body...
url: BASE_URL + params.url, //url 参数同名覆盖
success: (res) => {
resolve(res.data)
},
fail: (err) => {
reject(err)
},
complete: () => {
// 隐藏 loading(complete 不论成功与失败)
wx.hideLoading({ success: (res) => { } })
}
})
})
}

module.exports = {
request, // 请求封装
BASE_URL // 暴露基地址
};

app.js

1
2
3
4
5
6
7
8
9
10
11
// app.js
import { BASE_URL } from './utils/request'

App({
onLaunch() {
// 挂载到全局对象的globalData中,获取方式: getApp().globalData.BASE_URL
this.globalData = {
BASE_URL: BASE_URL // 全局基地址
}
},
})

pages/home/home.js

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
import {request} from '../../utils/request'

// pages/home/home.js
Page({

/**
* 页面的初始数据
*/
data: {
BASE_URL: '',
looplist: []
},

/**
* 生命周期函数--监听页面加载
*/
onLoad(options) {
// 获取小程序全局实例,将全局基地址赋值到页面data
this.setData({
BASE_URL: getApp().globalData.BASE_URL
});
this.renderSwiper()
},

renderSwiper() {
request({ url: '/recommends' }).then(res => {
console.log(res);
this.setData({
looplist: res
})
}).catch(err => {
console.error(err);
})
},
...
})
1
2
3
4
5
6
<!--pages/home/home.wxml-->
<swiper indicator-dots="{{true}}" circular="{{true}}" autoplay="{{true}}" interval="2000">
<swiper-item wx:for="{{looplist}}" wx:key="index">
<image src="{{BASE_URL + item.url}}" mode="widthFix"/>
</swiper-item>
</swiper>

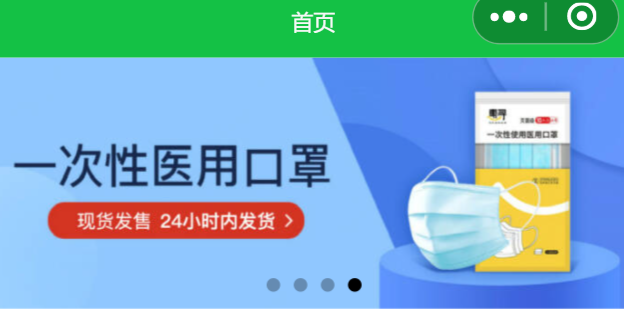

image-20260203155947367

列表+懒加载

首页列表:商品列表请求和渲染展示、列表滚动到底懒加载处理、下拉刷新逻辑

1
2
3
4
5
6
7
<!--pages/home/home.wxml-->
<view wx:for="{{goodlist}}" wx:key="index" class="goodbox">
<image src="{{BASE_URL + item.poster}}" mode="widthFix" />
<view>{{item.title}}</view>
<view>价格:<text style="color: red">¥{{item.price}}</text></view>
<view>好评率:{{item.goodcomment}}</view>
</view>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
import {request} from '../../utils/request'
// pages/home/home.js
Page({
/**
* 页面的初始数据
*/
data: {
BASE_URL: '',
looplist: [],
goodlist: [],
currentPage: 1,
goodTotal: 0
},
/**
* 生命周期函数--监听页面加载
*/
onLoad(options) {
// 获取小程序全局实例,将全局基地址赋值到页面data
this.setData({
BASE_URL: getApp().globalData.BASE_URL
});
//this.renderSwiper() //轮播
this.renderGoods() //商品
},

renderGoods() {
//默认分页10条,否则翻页不生效 json-server 1.0.0-beta.3
request({ url: `/goods?_page=${this.data.currentPage}` }).then(res => {
console.log(res.data); // _page 默认10条,数据在 data 中
this.setData({
goodlist: [...this.data.goodlist, ...res.data],
goodTotal: res.items
})
}).catch(err => {
console.error(err);
})
},

/**
* 页面上拉触底事件的处理函数
*/
onReachBottom() {
// 懒加载效果,滚动到底部按分页加载
console.log(this.data.goodlist.length, this.data.goodTotal);
if (this.data.goodlist?.length === this.data.goodTotal) {
console.log("滚动到底了...");
return
}
this.setData({
currentPage: this.data.currentPage + 1
})
this.renderGoods() // current 增加追加渲染列表数据
},
...
})

下拉刷新更新数据:

1
2
3
4
5
{
"usingComponents": {},
"navigationBarTitleText": "首页",
"enablePullDownRefresh": true //开启下拉刷新
}
1
2
3
4
5
6
7
8
9
10
11
// pages/home/home.js
/**
* 页面相关事件处理函数--监听用户下拉动作
*/
onPullDownRefresh() {
setTimeout(() => {
//更新数据
console.log("下拉更新数据了");
wx.stopPullDownRefresh() //停止下拉刷新
}, 1000) //eg: 1s时间
},

搜索+吸顶

搜索和吸顶:自定义组件搜索输入框,吸顶引入扩展组件 sticky 使用

components/search/search.xx

1
2
<!--components/search/search.wxml-->
<input placeholder="请输入搜索内容" bindtap="handleTap" />
1
2
3
4
5
6
7
8
// components/search/search.js
Component({
methods: {
handleTap() {
this.triggerEvent("SearchEvent")
}
}
})
1
2
3
4
5
6
7
8
9
/* components/search/search.wxss */
input{
border: 1rpx solid gray;
border-radius: 10rpx;
margin: 10rpx;
padding: 10rpx;
height: 30rpx;
background-color: white;
}

pages/home/home.xx

1
2
3
4
5
6
7
8
{
"usingComponents": {
"mysearch": "../../components/search/search", //引入 search 自定义组件
"mp-sticky": "@miniprogram-component-plus/sticky" //引入 扩展组件:吸顶组件 sticky
},
"navigationBarTitleText": "首页",
"enablePullDownRefresh": true
}
1
2
3
4
5
6
7
<!--pages/home/home.wxml-->
<!-- 搜索框 + sticky 吸顶效果(375宽度的机型上不生效,原因未知,可能是组件库BUG) -->
<mp-sticky offset-top="0">
<view style="width: 100vw">
<mysearch bindSearchEvent="handleSearchEvent"></mysearch>
</view>
</mp-sticky>

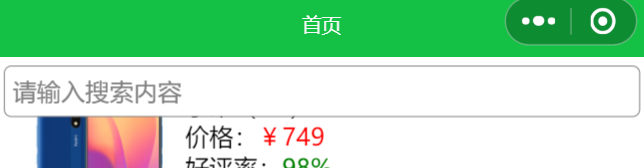

image-20260203183639345

页面跳转+带参

页面跳转带参:商品列表页绑定点击事件,携带多个参数到详情页面,详情页解析参数并设置自己的导航栏标题

  • wx.navigateTo() 直接跳转到【目标页】
  • wx.redirectTo() 关闭当前页面再跳转到目标页
  • wx.switchTab() 跳转【底部选项卡】页
  • wx.setNavigationBarTitle({ title: '' }) 设置当前页顶部导航栏的标题

pages/home/home.xx

1
2
3
4
5
<!--pages/home/home.wxml-->
<!-- 列表:绑定点击跳转事件 并 携带参数 -->
<view wx:for="{{goodlist}}" wx:key="index" class="goodbox" bindtap="handleGoToDetail" data-id="{{item.id}}" data-title="{{item.title}}">
...
</view>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
import { request } from '../../utils/request'
// pages/home/home.js
Page({
handleGoToDetail(evt) {
//wx.redirectTo() - 关闭当前页面再跳转到目标页
//wx.switchTab() - 跳转【底部选项卡】页
var id = evt.currentTarget.dataset.id
var title = evt.currentTarget.dataset.title
console.log(id, title);
wx.navigateTo({ //- 直接跳转到【目标页】
url: `/pages/detail/detail?id=${id}&title=${title}`,
})
},
...
})

app.json

1
2
3
4
5
6
7
{
"pages": [
"pages/home/home",
...
"pages/detail/detail"
],
}

pages/detail/detail.xx

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
// pages/detail/detail.js
Page({
/**
* 生命周期函数--监听页面加载
*/
onLoad(options) {
//列表进入详情携带的参数 id,即 url?id=1&title=小米
console.log(options); // {id: "2", title: "小米"} options.id options.title
//设置当前页面导航栏的 title
wx.setNavigationBarTitle({
title: options.title,
})
},
...
})

5. 详情页

【添加编译模式】

设置后,后面就只编译这一页,对开发进行时相当友好。

image-20260203190316584

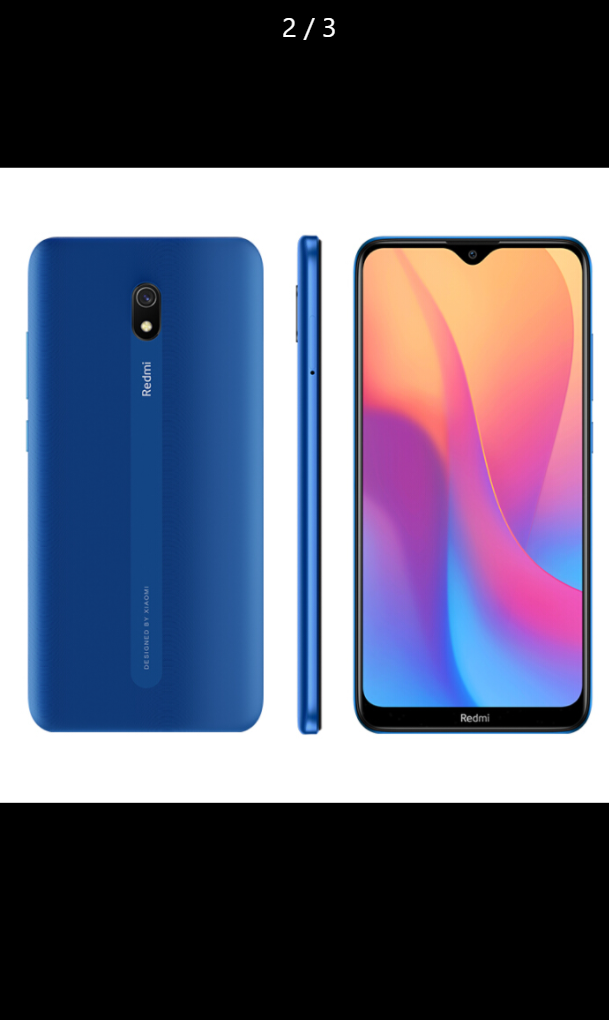

轮播+全屏预览

轮播和全屏预览:详情页轮播图、原生方法全屏预览轮播图

  • wx.previewImage({ }) 全屏预览图片
1
2
3
4
5
6
7
8
<!--pages/detail/detail.wxml-->
<!-- 详情页轮播 -->
<swiper indicator-dots="{{true}}" circular="{{true}}" autoplay="{{true}}" interval="2000">
<swiper-item wx:for="{{info.slides}}" wx:key="index">
<!-- aspectFit 保持缩放比,样式中设置了图片的宽高,为了让图片完整显示 -->
<image src="{{BASE_URL + item}}" mode="aspectFit" bindtap="handleFullScreenTap" data-current="{{BASE_URL + item}}" />
</swiper-item>
</swiper>
1
2
3
4
5
6
7
8
/* pages/detail/detail.wxss */
swiper image{
width: 100%;
height: 200px;
}
swiper {
height: 200px;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
const { request, BASE_URL } = require("../../utils/request");
// pages/detail/detail.js
Page({
data: {
BASE_URL: '',
info: null
},
onLoad(options) {
// 获取小程序全局实例,将全局基地址赋值到页面data
this.setData({
BASE_URL: getApp().globalData.BASE_URL
});
//列表进入详情携带的参数 id,即 url?id=1&title=小米
console.log(options); // {id: "2", title: "小米"} options.id options.title
//设置当前页面导航栏的 title
wx.setNavigationBarTitle({
title: options.title,
})
//ajax请求详情信息
this.getGoodDetailById(options.id)
},

getGoodDetailById(id) {
request({
url: `/goods/${id}`
}).then(res => {
console.log(res);
this.setData({
info: res
})
}).catch(err => {
console.error(err);
})
},

handleFullScreenTap(evt) {
//原生方法全屏预览图片
wx.previewImage({
current: evt.currentTarget.dataset.current, //当前显示图片的 http 链接
urls: this.data.info.slides.map(item => BASE_URL + `${item}`) //需要预览的图片 http 链接列表
})
},
...
})

image-20260203191854728

详情

商品详情:页内导航和高亮处理、吸顶效果、商品详情遍历

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
<!--pages/detail/detail.wxml-->
<!-- 详情页轮播 -->
<swiper indicator-dots="{{true}}" circular="{{true}}" autoplay="{{true}}" interval="2000">
<swiper-item wx:for="{{info.slides}}" wx:key="index">
<!-- aspectFit 保持缩放比,样式中设置了图片的宽高,为了让图片完整显示 -->
<image src="{{BASE_URL + item}}" mode="aspectFit" bindtap="handleFullScreenTap" data-current="{{BASE_URL + item}}" />
</swiper-item>
</swiper>
<!-- 详情页 tabbar + sticky吸顶(需要设置子元素 100vw) -->
<mp-sticky offset-top="0">
<view class="detailtabbar" style="width: 100vw;">
<view class="{{current === 0 ? 'active' : ''}}" bindtap="handleActive" data-index="{{0}}">商品详情</view>
<view class="{{current === 1 ? 'active' : ''}}" bindtap="handleActive" data-index="{{1}}">用户评价</view>
</view>
</mp-sticky>
<!-- 详情页:商品详情 -->
<view wx:if="{{current === 0}}">
<view style="color: gray; margin: 10px;">{{info.feature}}</view>
<image wx:for="{{info.desc}}" src="{{item}}" mode="widthFix" style="width: 100%;" />
</view>
<!-- 详情页:用户评价 -->
<view wx:else>
<view wx:for="{{comments}}" wx:key="index" style="border-bottom: 1px solid lightgray;">
<view class="user">
<image src="{{BASE_URL + item.userImageUrl}}" mode="widthFix" class="left" />
<view class="left">{{item.nickname}}</view>
<view class="right">{{item.creationTime}}</view>
</view>
<view class="content">{{item.content}}</view>
<view class="content">
<image src="{{BASE_URL + item.imgUrl}}" mode="widthFix" />
</view>
</view>
</view>

<!-- 底部按钮 -->
<view class="bottom">
<view style="background-color: #14c145;">查看购物车</view>
<view style="background-color: #F76260;">加入购物车</view>
<view style="background-color: #ffa591;">立即购买</view>
</view>
1
2
3
4
5
{
"usingComponents": {
"mp-sticky": "@miniprogram-component-plus/sticky"
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
/* pages/detail/detail.wxss */
swiper image {
width: 100%;
height: 200px;
}
swiper {
height: 200px;
}

.detailtabbar {
display: flex;
flex-direction: row;
text-align: center;
height: 100rpx;
line-height: 100rpx;
background-color: white;
}

.detailtabbar view {
flex: 1;
}
.detailtabbar .active {
border-bottom: 1px solid red;
}

.user {
overflow: hidden;
padding: 20px;
}
.user .left {
float: left;
height: 100rpx;
line-height: 100rpx;
}
.user image {
width: 100rpx;
border-radius: 50rpx;
}
.user .right {
float: right;
height: 100rpx;
line-height: 100rpx;
}
.content {
padding: 20rpx;
}
.content image {
width: 300rpx;
}

.bottom {
height: 100rpx;
line-height: 100rpx;
text-align: center;
position: fixed;
left: 0;
bottom: 0;
display: flex;
flex-direction: row;
justify-content: space-around;
width: 100%;
}
.bottom view{
flex: 1;
color: white;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
const { request, BASE_URL } = require("../../utils/request");

// pages/detail/detail.js
Page({

/**
* 页面的初始数据
*/
data: {
BASE_URL: '',
info: null,
current: 0,
comments: []
},

/**
* 生命周期函数--监听页面加载
*/
onLoad(options) {
// 获取小程序全局实例,将全局基地址赋值到页面data
this.setData({
BASE_URL: getApp().globalData.BASE_URL
});
//列表进入详情携带的参数 id,即 url?id=1&title=小米
console.log(options); // {id: "2", title: "小米"} options.id options.title
//设置当前页面导航栏的 title
wx.setNavigationBarTitle({
title: options.title,
})
//ajax请求详情信息
this.getGoodDetailById(options.id)
//ajax请求评价信息
this.getGoodComment()
},

getGoodDetailById(id) {
request({
url: `/goods/${id}`
}).then(res => {
console.log(res);
this.setData({
info: res
})
}).catch(err => {
console.error(err);
})
},

handleFullScreenTap(evt) {
//原生方法全屏预览图片
wx.previewImage({
current: evt.currentTarget.dataset.current, //当前显示图片的 http 链接
urls: this.data.info.slides.map(item => BASE_URL + `${item}`) //需要预览的图片 http 链接列表
})
},

handleActive(evt) {
this.setData({
current: evt.currentTarget.dataset.index
})
},

getGoodComment() {
request({
url: "/comments"
}).then(res => {
console.log(res);
this.setData({
comments: res
})
}).catch(err => {
console.log(err);
})
},
...
})

image-20260203215101434

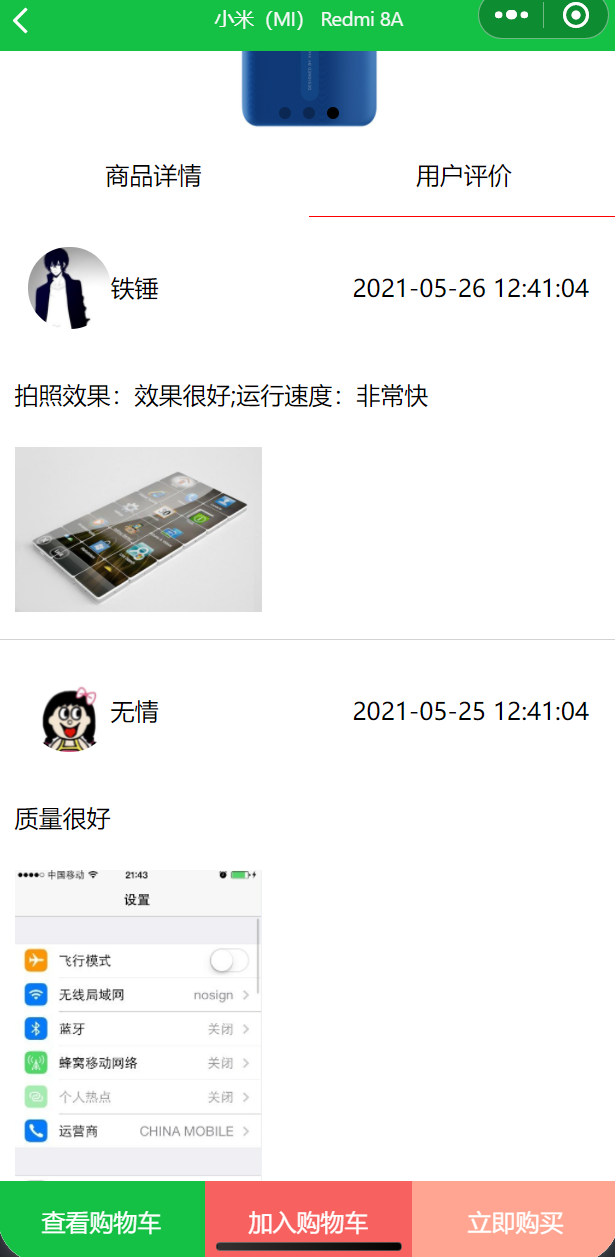

评价

商品用户评价:评价内容请求、列表布局、底部固定3个按钮布局

代码同上。

image-20260203215134133

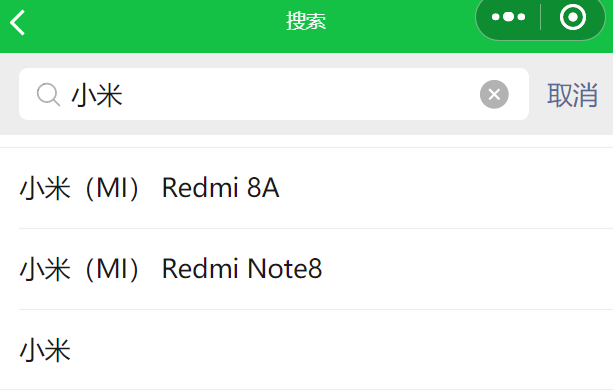

6. 搜索模块

【使用 WeUI】

官方文档:https://wechat-miniprogram.github.io/weui/docs/

  1. 通过 useExtendedLib 扩展库 的方式引入,这种方式引入的组件将不会计入代码包大小
  2. 可以通过npm方式下载构建,npm包名为weui-miniprogram

app.json - 使用第 1 种方式引入,只需要添加一个配置即可

1
2
3
4
5
6
{
...
"useExtendedLib": {
"weui": true
}
}

参考文档:https://wechat-miniprogram.github.io/weui/docs/search.html

pages/search/search.xx

1
2
3
4
5
6
{
"usingComponents": {
"mp-searchbar": "weui-miniprogram/searchbar/searchbar" //引入 weUI searchbar
},
"navigationBarTitleText": "搜索"
}
1
2
3
<!--pages/search/search.wxml-->
<!-- WeUI searchbar 搜索组件 -->
<mp-searchbar bindselectresult="handleSearchResult" search="{{search}}"></mp-searchbar>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
const { request } = require("../../utils/request");
// pages/search/search.js
Page({
data: {
search: ''
},
onLoad(options) {
this.setData({
search: this.search.bind(this) //绑定 this 指向
})
},
// 输入过程不断调用此函数得到新的搜索结果,参数是输入框的值value,返回Promise实例
search(value) {
return Promise.all([
request({ url: `/goods` }),
request({ url: `/categories` })
]).then(res => {
console.log(res[0], res[1]);
// 商品名称 + type 1 进详情页,最终映射对象必须是 {text: xx, type: yy}
var goodsTitles = res[0].filter(item => item.title.includes(value)).map(item => {
return { ...item, text: item.title, type: 1 }
})
// 分类名称 + type 2 进搜索列表,最终映射对象必须是 {text: xx, type: yy}
var categoriesTitles = res[1].filter(item => item.title.includes(value)).map(item => {
return { ...item, text: item.title, type: 2 }
})
return [...goodsTitles, ...categoriesTitles]
})
},
// 在选择搜索结果的时候触发事件
handleSearchResult(e) {
console.log(e.detail); // {index: x, item: {...}}
var { type, id, title } = e.detail.item
if (type === 1) {
console.log("详情页面");
wx.navigateTo({
url: `/pages/detail/detail?id=${id}&title=${title}`
})
} else {
console.log("搜索列表");
wx.navigateTo({
url: `/pages/searchlist/searchlist?id=${id}&title=${title}`
})
}
}
})

image-20260203215357206

搜索列表 和 排序

搜索列表和排序:列表布局、详情页跳转、图标引入、价格排序和评价排序

1
2
3
4
5
6
7
8
9
<!--pages/searchlist/searchlist.wxml-->
<view class="goodcontainer">
<view wx:for="{{goodlist}}" wx:key="index" class="good" bindtap="handleGoToDetail" data-id="{{item.id}}" data-title="{{item.title}}">
<image src="{{BASE_URL + item.poster}}" mode="widthFix" />
<view>{{item.title}}</view>
<view>价格:<text style="color: red">¥{{item.price}}</text></view>
<view>好评率:<text style="color: green">{{item.goodcomment}}</text></view>
</view>
</view>
1
2
3
4
5
{
"usingComponents": {
"mp-icon": "weui-miniprogram/icon/icon"
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
/* pages/searchlist/searchlist.wxss */
.goodcontainer {
display: flex;
flex-wrap: wrap;
}
.good {
width: 50%;
padding: 20rpx;
box-sizing: border-box;
text-align: center;
}
.good image{
width: 100%;
}

.sort-header {
display: flex;
flex-direction: row;
justify-content: space-around;
height: 80rpx;
line-height: 80rpx;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
const { request } = require("../../utils/request");
// pages/searchlist/searchlist.js
Page({
/**
* 页面的初始数据
*/
data: {
BASE_URL: '',
goodlist: [],
priceOrder: true,
commentOrder: true
},

/**
* 生命周期函数--监听页面加载
*/
onLoad(options) {
// 获取小程序全局实例,将全局基地址赋值到页面data
this.setData({
BASE_URL: getApp().globalData.BASE_URL
});
console.log(options); //接收参数
wx.setNavigationBarTitle({
title: options.title
})
this.getList(options.id)
},
//请求分类和商品列表
getList(id) {
request({
url: `/categories?id=${id}&_embed=goods`
}).then(res => {
console.log(res[0]); //在第一个元素里面
this.setData({
goodlist: res[0].goods
})
}).catch(err => {
console.error(err);
})
},
// 跳转详情页
handleGoToDetail(evt) {
var { id, title } = evt.currentTarget.dataset
wx.navigateTo({
url: `/pages/detail/detail?id=${id}&title=${title}`
})
},
// 价格排序
handlePriceOrder() {
console.log(this.data.priceOrder);
this.setData({
priceOrder: !this.data.priceOrder,
goodlist: this.data.priceOrder
? this.data.goodlist.sort((x, y) => y.price - x.price)
: this.data.goodlist.sort((x, y) => x.price - y.price)
})
},
// 评价排序
handleCommentOrder() {
console.log(this.data.commentOrder);
this.setData({
commentOrder: !this.data.commentOrder,
goodlist: this.data.commentOrder
? this.data.goodlist.sort((x, y) => parseInt(y.goodcomment) - parseInt(x.goodcomment))
: this.data.goodlist.sort((x, y) => parseInt(x.goodcomment) - parseInt(y.goodcomment))
})
},
...
})

image-20260203215428852

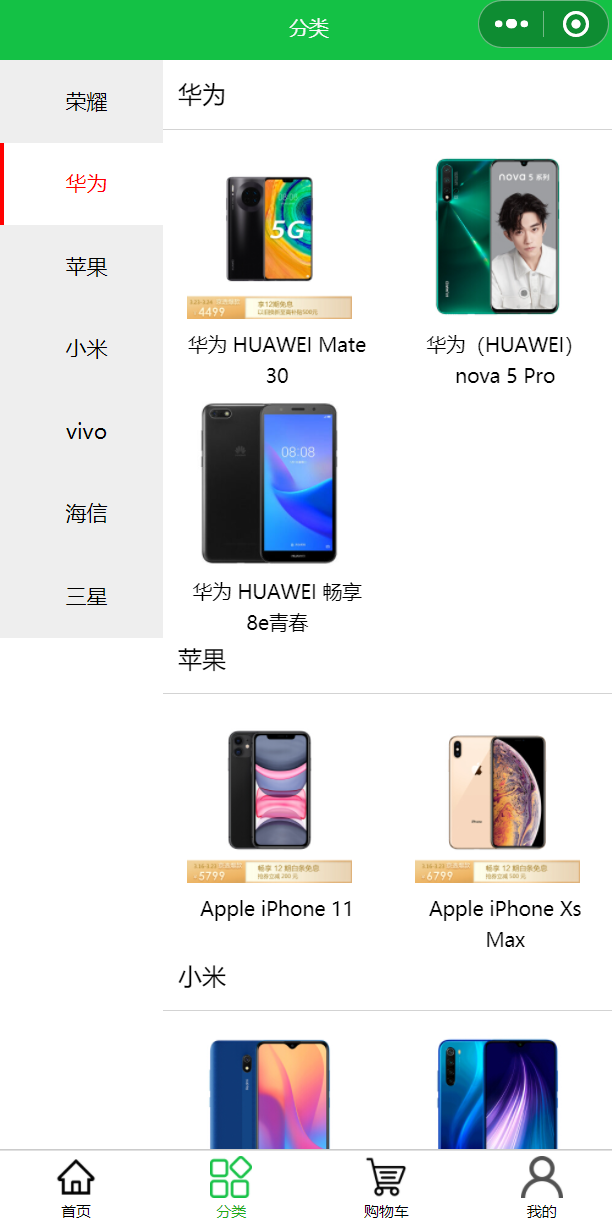

7. 分类模块

官方的扩展组件文档没有使用 demo,需要结合源码查看

扩展组件:https://developers.weixin.qq.com/miniprogram/dev/platform-capabilities/extended/component-plus/

源码示例:https://github.com/wechat-miniprogram/miniprogram-component-plus

源码 demo位置:/tools/demo/example/xxx,如 vtabs 在 /tools/demo/example/vtabs/…

或者通过该链接地址直接通过浏览器打开 微信开发工具 :https://developers.weixin.qq.com/s/SG4tK2mD77f7

vtabs 组件

vtabs 纵向选项卡组件,需与 <vtabs-content> 组件结合使用。

安装:npm i @miniprogram-component-plus/vtabs @miniprogram-component-plus/vtabs-content - 安装完 工具-构建npm

引入:pages/category/category.json

1
2
3
4
5
6
7
{
"usingComponents": {
"mp-vtabs": "@miniprogram-component-plus/vtabs",
"mp-vtabs-content": "@miniprogram-component-plus/vtabs-content"
},
"navigationBarTitleText": "分类"
}

分类页面:vtabs组件源码demo分析和使用、样式高度问题处理、跳转详情处理

1
2
3
4
5
6
7
8
9
10
11
12
13
14
<!--pages/category/category.wxml-->
<mp-vtabs vtabs="{{vtabs}}" activeTab="{{activeTab}}" bindtabclick="onTabCLick" bindchange="onChange" class="test">
<block wx:for="{{vtabs}}" wx:key="title">
<mp-vtabs-content tabIndex="{{index}}">
<view class="item-title">{{item.title}}</view>
<view class="vtabs-content-item">
<view wx:for="{{item.goods}}" wx:key="id" class="item" bindtap="handleGoodTap" data-id="{{item.id}}" data-title="{{item.title}}">
<image src="{{BASE_URL + item.poster}}" mode="widthFix" />
<view>{{item.title}}</view>
</view>
</view>
</mp-vtabs-content>
</block>
</mp-vtabs>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
/* pages/category/category.wxss */
/* page 拷贝过来的样式 */
page {
background-color: #FFFFFF;
height: 100%;
}
/* 标题 */
.item-title {
padding: 10px;
border-bottom: 1px solid lightgray;
}
.vtabs-content-item {
display: flex;
flex-wrap: wrap;
/* height: 100vh; 可以让每个分类单独一屏,会有样式问题 */
}
.vtabs-content-item .item {
width: 50%;
height: 300rpx; /* 300rpx 社区文档建议,可以正常显示 */
padding: 30rpx;
box-sizing: border-box;
}
.item image {
width: 200rpx;
}
.item view {
font-size: 13px;
text-align: center;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
const { request } = require("../../utils/request")
// pages/category/category.js
Page({
data: {
BASE_URL: '',
vtabs: [],
activeTab: 0
},
onLoad(options) {
// 获取小程序全局实例,将全局基地址赋值到页面data
this.setData({
BASE_URL: getApp().globalData.BASE_URL
});
request({ url: "/categories?_embed=goods" }).then(res => {
console.log(res);
this.setData({
vtabs: res
})
}).catch(err => {
console.error(err);
})
},
// 点击分类事件
onTabCLick(e) {
const index = e.detail.index
console.log('tabClick', index)
},
// 滑动右侧列表触发事件
onChange(e) {
const index = e.detail.index
console.log('change', index)
},
// 点击右侧商品触发事件
handleGoodTap(evt) {
const { id, title } = evt.currentTarget.dataset
console.log(id, title);
//跳转详情页
wx.navigateTo({ url: `/pages/detail/detail?id=${id}&title=${title}`})
},
...
})

image-20260204111209612

8. 授权模块(★)

模拟本地存储/删除 token:

1
2
wx.setStorageSync("token", {name: "jerry"})
wx.removeStorageSync("token")

微信授权与手机号绑定:微信授权流程、手机号绑定页面逻辑、购物车页auth拦截、个人中心页auth拦截

微信授权

获取用户信息:https://developers.weixin.qq.com/miniprogram/dev/api/open-api/user-info/wx.getUserProfile.html

获取用户头像和昵称:https://developers.weixin.qq.com/miniprogram/dev/framework/open-ability/userProfile.html

1
2
<!--pages/auth/auth.wxml-->
<button type="primary" bindtap="handleAuth">微信授权</button>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
// pages/auth/auth.js
Page({
handleAuth() {
// 推荐使用wx.getUserProfile获取用户信息,开发者每次通过该接口获取用户个人信息均需用户确认
// 开发者妥善保管用户快速填写的头像昵称,避免重复弹窗
wx.getUserProfile({
desc: '用于完善会员资料', // 声明获取用户个人信息后的用途,后续会展示在弹窗中,请谨慎填写
success: (res) => {
console.log(res);
var { userInfo } = res
wx.setStorageSync("token", userInfo)
wx.navigateTo({ url: '/pages/telform/telform' })
}
})
}
})

手机绑定

WeUI FormPage组件:https://wechat-miniprogram.github.io/weui/docs/form-page.html

WeUI Cells组件:https://wechat-miniprogram.github.io/weui/docs/cells.html

1
2
3
4
5
6
7
8
9
{
"usingComponents": {
"mp-form-page": "weui-miniprogram/form-page/form-page",
"mp-form": "weui-miniprogram/form/form",
"mp-cells": "weui-miniprogram/cells/cells",
"mp-cell": "weui-miniprogram/cell/cell"
},
"navigationBarTitleText": "手机号授权"
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
<!--pages/telform/telform.wxml-->
<mp-form-page title="手机绑定" subtitle="您的手机号将会与您的微信绑定">
<!-- 手机号输入 -->
<mp-cells title="信息" >
<mp-cell prop="mobile" title="手机号" required ext-class=" weui-cell_vcode">
<input bindinput="formInputMobile" data-field="mobile" class="weui-input" placeholder="请输入正确的手机号" />
</mp-cell>
<mp-cell prop="mobile" title="验证码" ext-class=" weui-cell_vcode">
<input bindinput="formInputCode" class="weui-input" placeholder="请输入验证码" value="{{code}}" />
<view slot="footer" class="weui-vcode-btn" bindtap="formRequestCode" >获取验证码</view>
</mp-cell>
</mp-cells>
<!-- 按钮 -->
<view slot="button">
<button class="weui-btn" type="primary" bindtap="submitForm">确定</button>
</view>
</mp-form-page>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
import { request } from "../../utils/request";

// pages/telform/telform.js
Page({
data: {
tel: '',
code: ''
},

formInputMobile(evt) {
console.log("手机号=", evt.detail.value);
this.setData({ tel: evt.detail.value })
},
formInputCode(evt) {
console.log("验证码=", evt.detail.value);
//this.setData({ code: evt.detail.value })
},
formRequestCode() {
//校验手机号
if (this.data.tel === '') {
wx.showToast({
title: '请输入手机号',
icon: 'fail',
duration: 2000
})
return
} else {
if (this.data.tel.length != 11) {
wx.showToast({
title: '请输入正确的手机号',
icon: 'fail',
duration: 2000
})
return
} else {
//正则校验手机号是否符合规则 todo
}
}
wx.showToast({
title: '测试验证码1234',
icon: 'success',
duration: 2000
})
// request({ url: '/code'}).then(res => {...})
this.setData({ code: '1234' }) //测试验证码
},

submitForm() {
//校验验证码
if (this.data.code === '' || this.data.code.length != 4) {
wx.showToast({
title: '请输入验证码',
icon: 'fail',
duration: 2000
})
return
}
wx.setStorageSync("tel", this.data.tel)
var userInfo = wx.getStorageSync("token")
request({
url: `/users?tel=${this.data.tel}&nickName=${userInfo.nickName}`
}).then(res => {
console.log(res);
if (res.length === 0) {
// 用户不存在,新增
request({
url: "/users",
method: "post",
data: {
...userInfo,
tel: this.data.tel
}
}).then(res => {
console.log("1111");
wx.navigateBack({ delta: 2 }) //返回2层页面
})
} else {
// 用户存在
console.log("2222");
wx.navigateBack({ delta: 2 }) //返回2层页面
}
}).catch(err => {
console.error(err);
})
},
...
})

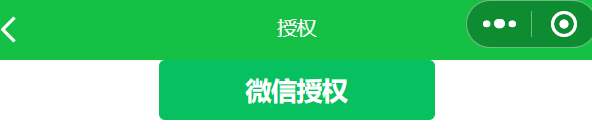

image-20260204123656943

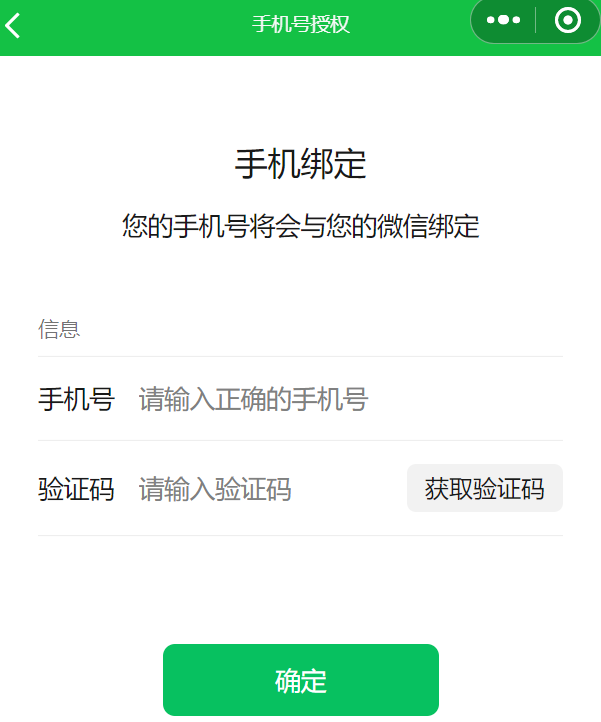

image-20260204123719260

authTool.js

1
2
3
4
5
6
7
8
9
10
11
12
13
function checkAuth(callback) {
if (wx.getStorageSync('tel')) {
callback() //回调函数处理业务
} else {
if (wx.getStorageSync('token')) {
wx.navigateTo({ url: '/pages/telform/telform' }) //手机绑定页
} else {
wx.navigateTo({ url: '/pages/auth/auth' }) //微信授权页
}
}
}

export default checkAuth

购物车与个人中心 auth 拦截

1
2
3
4
5
6
7
8
9
10
import checkAuth from "../../utils/authTool";
// pages/shopcar/shopcar.js
Page({
onShow() {
checkAuth(() => {
console.log("进入购物车");
})
},
...
})
1
2
3
4
5
6
7
8
9
10
import checkAuth from "../../utils/authTool";
// pages/shopcar/shopcar.js
Page({
onShow() {
checkAuth(() => {
console.log("进入我的");
})
},
...
})

9. 购物车模块

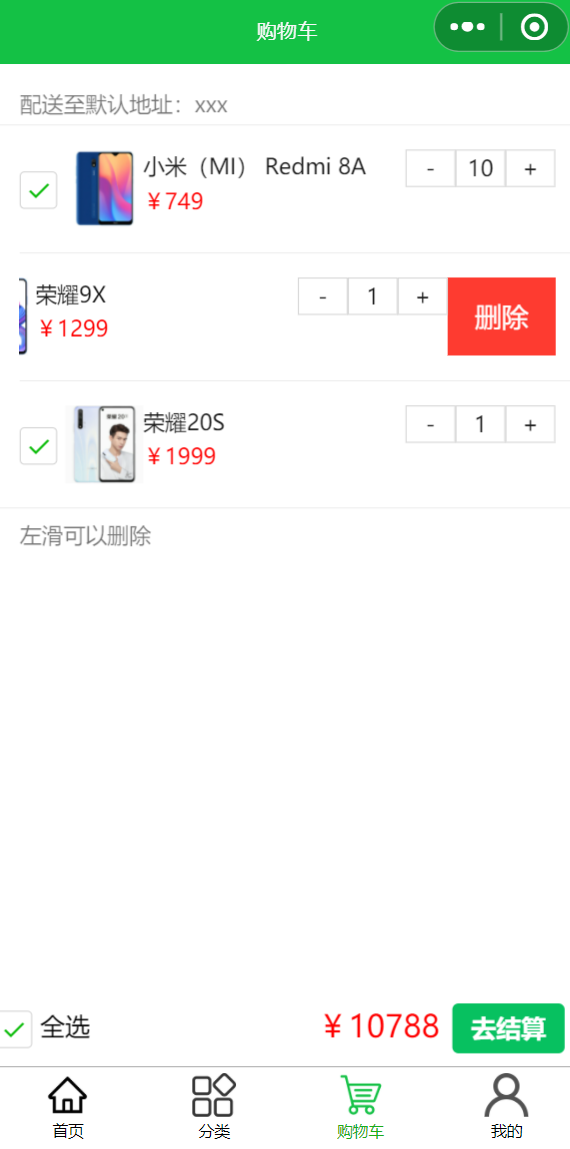

购物车模块:详情页按钮加入购物车、购物车布局、数据渲染、金额计算、左滑删除、全选与反选

引入:mp-slideview

1
2
3
4
5
6
7
8
{
"usingComponents": {
"mp-cells": "weui-miniprogram/cells/cells",
"mp-cell": "weui-miniprogram/cell/cell",
"mp-slideview": "weui-miniprogram/slideview/slideview"
},
"navigationBarTitleText": "购物车"
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
<!--pages/shopcar/shopcar.wxml-->
<mp-cells title="配送至默认地址:xxx" footer="左滑可以删除">
<!-- <mp-cell value="标题文字" footer="说明文字"></mp-cell>
<mp-cell>
<view>标题文字(使用slot)</view>
<view slot="footer">说明文字</view>
</mp-cell> -->
<mp-cell wx:for="{{cartlist}}" wx:key="id">
<!-- 左滑删除组件 mp-slideview -->
<mp-slideview buttons="{{slideButtons}}" bindbuttontap="slideButtonDeleteTap" data-item="{{item}}">
<view class="content">
<view class="cellcontent">
<checkbox checked="{{item.checked}}" bindtap="handleCheckedTap" data-item="{{item}}" />
<!-- image 的 mode 不能使用 widthFix 其他都可以,否则会影响左滑删除 -->
<image src="{{BASE_URL + item.good.poster}}" mode="aspectFit" />
<view>
<view>{{item.good.title}}</view>
<view style="color: red">¥{{item.good.price}}</view>
</view>
</view>
<view slot="footer" class="cellfooter">
<text bindtap="handleMinusTap" data-item="{{item}}">-</text>
<text>{{item.number}}</text>
<text bindtap="handleAddTap" data-item="{{item}}">+</text>
</view>
</view>
</mp-slideview>
</mp-cell>
</mp-cells>

<wxs src="./shopcar.wxs" module="calObj"></wxs>
<view class="footer">
<!-- 全选组件 -->
<checkbox-group bindchange="handleAllChecked">
<checkbox checked="{{isAllChecked}}" />
</checkbox-group>
<view>全选</view>
<view style="position:fixed; right: 180rpx; color: red; font-size: 20px;">¥{{calObj.sum(cartlist)}}</view>
<button type="primary" size="mini">去结算</button>
</view>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
/* pages/shopcar/shopcar.wxss */
.content {
display: flex;
height: 100rpx;
justify-content: space-between;
}
.cellcontent {
display: flex;
}
.cellcontent checkbox {
line-height: 100rpx;
}
.cellcontent image {
width: 100rpx;
height: 100rpx;
}
.cellfooter text{
width: 60rpx;
display: inline-block;
text-align: center;
border: 1px solid lightgray;
}

.footer {
position: fixed;
left: 0;
bottom: 0;
width: 100%;
text-align: center;
margin-bottom: 20rpx;
height: 60rpx;
line-height: 60rpx;
background-color: white;
display: flex;
}
.footer button{
position: fixed;
right: 0;
margin-right: 20rpx;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
const { default: checkAuth } = require("../../utils/authTool");
const { request, BASE_URL } = require("../../utils/request");

// pages/shopcar/shopcar.js
Page({
/**
* 页面的初始数据
*/
data: {
BASE_URL: '',
slideButtons: [{
type: 'warn',
text: '删除',
}],
cartlist: [],
isAllChecked: false
},

/**
* 生命周期函数--监听页面加载
*/
onLoad(options) {
// 获取小程序全局实例,将全局基地址赋值到页面data
this.setData({
BASE_URL: getApp().globalData.BASE_URL
});
let { nickName } = wx.getStorageSync('token')
let tel = wx.getStorageSync('tel')
console.log(nickName, tel);
request({ url: `/carts?_embed=good&username=${nickName}&tel=${tel}` }).then(res => {
console.log("cartlist=", res);
this.setData({
cartlist: res
})
}).catch(err => {
console.error(err);
})
// 检查是否全选,并设置全选 checked
this.setData({
isAllChecked: this.data.cartlist.every(item => item.checked === true)
})
},

// 左滑删除按钮点击事件回调(必须添加,否则点击无反应)
slideButtonDeleteTap(evt) {
console.log('左滑删除触发', evt);
// 此处编写删除购物车商品的逻辑(示例:提示+模拟删除)
wx.showModal({
title: '提示',
content: '确定删除该商品吗?',
success: (res) => {
if (res.confirm) {
// 调用接口删除购物车数据 + 更新页面列表
let id = evt.currentTarget.dataset.item.id
request({ url: `/carts/${id}`, method: "delete" }).then(res => {
console.log(res);
wx.showToast({
title: '删除成功',
icon: 'success',
duration: 1500
});
})
this.setData({
cartlist: this.data.cartlist.filter(item => item.id !== id)
})
}
}
});
},

handleCheckedTap(evt) {
let item = evt.currentTarget.dataset.item
console.log(item);
item.checked = !item.checked
this.handleUpdate(item)
// 检查是否全选,并设置全选 checked
this.setData({
isAllChecked: this.data.cartlist.every(item => item.checked === true)
})
},

handleUpdate(item) {
this.setData({
cartlist: this.data.cartlist.map(data => {
if (data.id === item.id) {
return item
}
return data
})
})
request({
url: `/carts/${item.id}`,
method: "put",
data: {
username: item.username,
tel: item.tel,
goodId: item.goodId,
number: item.number,
checked: item.checked
}
})
},

handleMinusTap(evt) {
let item = evt.currentTarget.dataset.item
console.log(item);
item.number--
this.handleUpdate(item)
},

handleAddTap(evt) {
let item = evt.currentTarget.dataset.item
console.log(item);
item.number++
this.handleUpdate(item)
},
// 全选与否逻辑处理
handleAllChecked(evt) {
console.log(evt.detail.value);
if (evt.detail.value.length === 0) {
//未全选
this.setData({
cartlist: this.data.cartlist.map(item => ({
...item,
checked: false
}))
})
//请求接口批量修改为 false
} else {
//全选
this.setData({
cartlist: this.data.cartlist.map(item => ({
...item,
checked: true
}))
})
//请求接口批量修改为 true
}
},
/**
* 生命周期函数--监听页面显示
*/
onShow() {
checkAuth(() => {
console.log("进入购物车");
})
},
...
})
1
2
3
4
5
6
7
8
9
10
11
12
13
14
// pages/shopcar/shopcar.wxs
function sum(list) {
var total = 0
for (var i = 0; i < list.length; i++) {
if(list[i].checked) {
total += list[i].good.price * list[i].number
}
}
return total
}

module.exports = {
sum: sum
}

image-20260204170108366

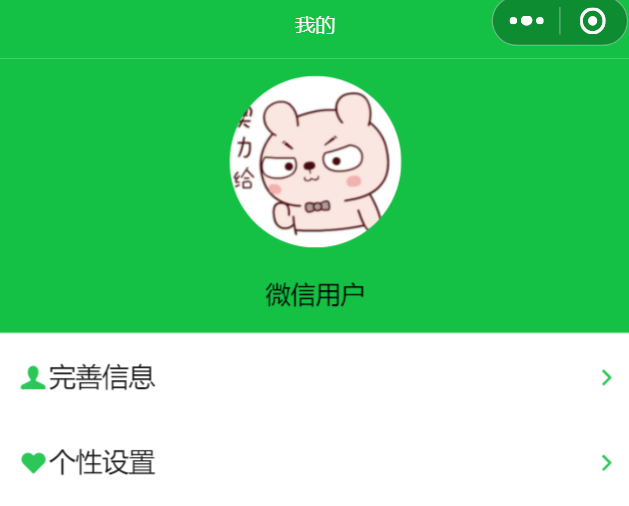

10. 我的模块

布局+换头像

个人中心:布局、换头像功能

更换头像:https://developers.weixin.qq.com/miniprogram/dev/api/media/video/wx.chooseMedia.html

引入:

1
2
3
4
5
6
7
8
{
"usingComponents": {
"mp-cells": "weui-miniprogram/cells/cells",
"mp-cell": "weui-miniprogram/cell/cell",
"mp-icon": "weui-miniprogram/icon/icon"
},
"navigationBarTitleText": "我的"
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
<!--pages/center/center.wxml-->
<view class="userinfo">
<image src="https://janycode.github.io/img/avatar.png" mode="widthFix" bindtap="handleAvatarChange" />
<view>{{userInfo.nickName}}</view>
</view>

<view>
<mp-cell value="完善信息">
<mp-icon slot="icon" type="field" icon="me" color="#14c145" size="{{20}}"></mp-icon>
<mp-icon slot="icon" type="field" icon="arrow" color="#14c145" size="{{10}}" slot="footer"></mp-icon>
</mp-cell>
<mp-cell value="个性设置">
<mp-icon slot="icon" type="field" icon="like" color="#14c145" size="{{20}}"></mp-icon>
<mp-icon slot="icon" type="field" icon="arrow" color="#14c145" size="{{10}}" slot="footer"></mp-icon>
</mp-cell>
</view>
1
2
3
4
5
6
7
8
9
10
11
12
13
/* pages/center/center.wxss */
.userinfo {
background-color: #14c145;
text-align: center;
height: 320rpx;
}
.userinfo image{
width: 200rpx;
height: 200rpx;
line-height: 100rpx;
border-radius: 100rpx;
margin: 20rpx;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
import checkAuth from "../../utils/authTool";

// pages/center/center.js
Page({
data: {
BASE_URL: '',
userInfo: null
},

onLoad(options) {
// 获取小程序全局实例,将全局基地址赋值到页面data
this.setData({
BASE_URL: getApp().globalData.BASE_URL
});
},
//更换头像:拍摄或从手机相册中选择图片或视频
handleAvatarChange() {
wx.chooseMedia({
count: 1, //选择图片数量
mediaType: ['image','video'],
sourceType: ['album', 'camera'],
maxDuration: 30,
camera: 'back',
//success(res) {
success: (res) => { //使用箭头函数 确保 this 指向为当前页面对象
console.log(res.tempFiles[0].tempFilePath)
console.log(res.tempFiles[0].size)
this.setData({
userInfo: {
...this.data.userInfo,
avatarUrl: res.tempFiles[0].tempFilePath
}
})
//放在本地存储中
wx.setStorageSync("token", {
...wx.getStorageSync("token"),
avatarUrl: res.tempFiles[0].tempFilePath
})
}
})
},
/**
* 生命周期函数--监听页面显示
*/
onShow() {
checkAuth(() => {
console.log("进入我的");
this.setData({
userInfo: wx.getStorageSync("token")
})
})
},
...
})

image-20260204173729986

11. 微信支付(★)

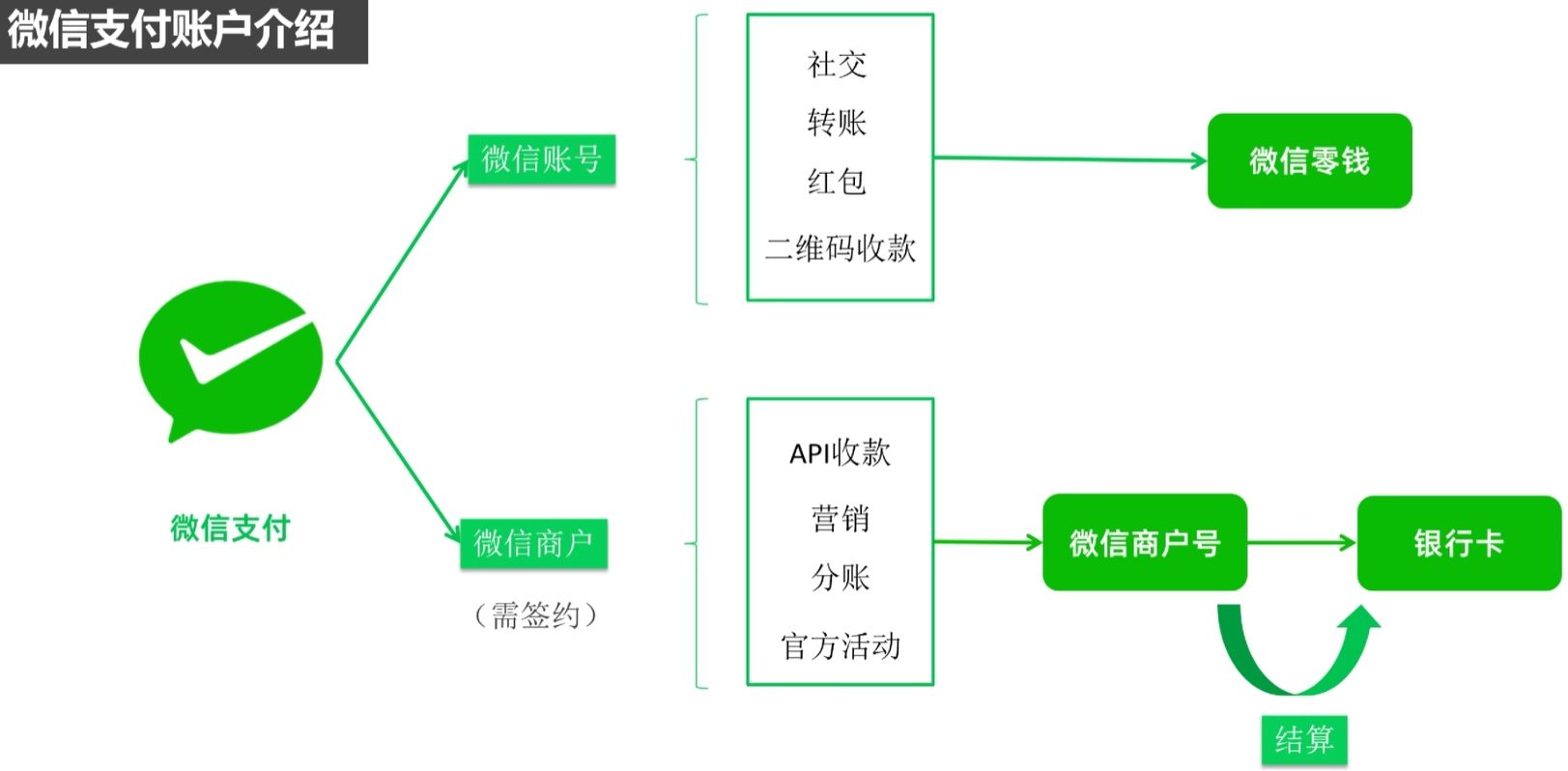

微信支付账户介绍

image-20260204173814836

微信账号:二维码收款

  • 主要面向线下收款,如果小程序面向线上,异地交易会导致账户异常

微信商户:找有权限的代理商可以去申请签约

  • api 收款、营销、分账、官方活动
  • 钱 进微信商户号,最终结算/体现到银行卡

整体业务流程

① 签约商户

  1. 方式1

② API 对接

③ 回调处理

④ 对账

参考资料:

微信支付开发文档:https://pay.weixin.qq.com/doc/v3/partner/4012069852

微信小程序支付:https://pay.weixin.qq.com/doc/v3/partner/4012085810

参考实现流程:https://blog.csdn.net/qq_40791475/article/details/147588905


02-wechat微信小程序项目搭建
https://janycode.github.io/2022/05/22/04_大前端/10_小程序/02-wechat微信小程序项目搭建/
作者
Jerry(姜源)
发布于
2022年5月22日
许可协议
