03-MongoDB索引和聚合

image-20220813214346098

聚合 - Aggregation Pipline

类似于将SQL中的group by + order by + left join 等操作管道化。

常规使用

  • 图例理解


  • 准备数据
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
> db.orders.insertMany( [
     { _id: 1, cust_id: "abc1", ord_date: ISODate("2012-11-02T17:04:11.102Z"), status: "A", amount: 50 },
     { _id: 2, cust_id: "xyz1", ord_date: ISODate("2013-10-01T17:04:11.102Z"), status: "A", amount: 100 },
     { _id: 3, cust_id: "xyz1", ord_date: ISODate("2013-10-12T17:04:11.102Z"), status: "D", amount: 25 },
     { _id: 4, cust_id: "xyz1", ord_date: ISODate("2013-10-11T17:04:11.102Z"), status: "D", amount: 125 },
     { _id: 5, cust_id: "abc1", ord_date: ISODate("2013-11-12T17:04:11.102Z"), status: "A", amount: 25 }
 ] );
{ "acknowledged" : true, "insertedIds" : [ 1, 2, 3, 4, 5 ] }
> db.orders.find({})
{ "_id" : 1, "cust_id" : "abc1", "ord_date" : ISODate("2012-11-02T17:04:11.102Z"), "status" : "A", "amount" : 50 }
{ "_id" : 2, "cust_id" : "xyz1", "ord_date" : ISODate("2013-10-01T17:04:11.102Z"), "status" : "A", "amount" : 100 }
{ "_id" : 3, "cust_id" : "xyz1", "ord_date" : ISODate("2013-10-12T17:04:11.102Z"), "status" : "D", "amount" : 25 }
{ "_id" : 4, "cust_id" : "xyz1", "ord_date" : ISODate("2013-10-11T17:04:11.102Z"), "status" : "D", "amount" : 125 }
{ "_id" : 5, "cust_id" : "abc1", "ord_date" : ISODate("2013-11-12T17:04:11.102Z"), "status" : "A", "amount" : 25 }
  • 聚合操作
1
2
3
4
5
6
7
8
> db.orders.aggregate([
                      { $match: { status: "A" } },
                      { $group: { _id: "$cust_id", total: { $sum: "$amount" } } },
                      { $sort: { total: -1 } }
                    ])
{ "_id" : "xyz1", "total" : 100 }
{ "_id" : "abc1", "total" : 75 }

官网还有两个例子：

Pipline操作

MongoDB的聚合管道（Pipline）将MongoDB文档在一个阶段（Stage）处理完毕后将结果传递给下一个阶段（Stage）处理。阶段（Stage）操作是可以重复的。

表达式：处理输入文档并输出。表达式是无状态的，只能用于计算当前聚合管道的文档，不能处理其它的文档。

这里我们介绍一下聚合框架中常用的几个Stages：

  • $project：修改输入文档的结构。可以用来重命名、增加或删除域，也可以用于创建计算结果以及嵌套文档。
  • $match：用于过滤数据，只输出符合条件的文档。$match使用MongoDB的标准查询操作。
  • $limit：用来限制MongoDB聚合管道返回的文档数。
  • $skip：在聚合管道中跳过指定数量的文档，并返回余下的文档。
  • $unwind：将文档中的某一个数组类型字段拆分成多条，每条包含数组中的一个值。
  • $group：将集合中的文档分组，可用于统计结果。
  • $sort：将输入文档排序后输出。
  • $geoNear：输出接近某一地理位置的有序文档。
  • $bucket: 分组（分桶）计算。
  • $facet : 多次分组计算。
  • $out: 将结果集输出，必须是Pipline最后一个Stage。

举几个例子

  • $project
1
2
3
4
5
6
7
8
9
10
11
12
> db.orders.aggregate(
     { $project : {
         _id : 0 , // 默认不显示_id
         cust_id : 1 ,
         status : 1
     }});
{ "cust_id" : "abc1", "status" : "A" }
{ "cust_id" : "xyz1", "status" : "A" }
{ "cust_id" : "xyz1", "status" : "D" }
{ "cust_id" : "xyz1", "status" : "D" }
{ "cust_id" : "abc1", "status" : "A" }

  • $skip
1
2
3
4
 db.orders.aggregate(
     { $skip : 4 });
{ "_id" : 5, "cust_id" : "abc1", "ord_date" : ISODate("2013-11-12T17:04:11.102Z"), "status" : "A", "amount" : 25 }
  • $unwind
1
2
3
4
5
6
7
> db.inventory2.insertOne({ "_id" : 1, "item" : "ABC1", sizes: [ "S", "M", "L"] })
{ "acknowledged" : true, "insertedId" : 1 }
> db.inventory2.aggregate( [ { $unwind : "$sizes" } ] )
{ "_id" : 1, "item" : "ABC1", "sizes" : "S" }
{ "_id" : 1, "item" : "ABC1", "sizes" : "M" }
{ "_id" : 1, "item" : "ABC1", "sizes" : "L" }
  • $bucket
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
> db.artwork.insertMany([
 { "_id" : 1, "title" : "The Pillars of Society", "artist" : "Grosz", "year" : 1926,
     "price" : NumberDecimal("199.99") },
 { "_id" : 2, "title" : "Melancholy III", "artist" : "Munch", "year" : 1902,
     "price" : NumberDecimal("280.00") },
 { "_id" : 3, "title" : "Dancer", "artist" : "Miro", "year" : 1925,
     "price" : NumberDecimal("76.04") },
 { "_id" : 4, "title" : "The Great Wave off Kanagawa", "artist" : "Hokusai",
     "price" : NumberDecimal("167.30") },
 { "_id" : 5, "title" : "The Persistence of Memory", "artist" : "Dali", "year" : 1931,
     "price" : NumberDecimal("483.00") },
 { "_id" : 6, "title" : "Composition VII", "artist" : "Kandinsky", "year" : 1913,
     "price" : NumberDecimal("385.00") },
 { "_id" : 7, "title" : "The Scream", "artist" : "Munch", "year" : 1893 },
 { "_id" : 8, "title" : "Blue Flower", "artist" : "O'Keefe", "year" : 1918,
     "price" : NumberDecimal("118.42") }
 ])
{
        "acknowledged" : true,
        "insertedIds" : [
                1,
                2,
                3,
                4,
                5,
                6,
                7,
                8
        ]
}
> db.artwork.find({})
{ "_id" : 1, "title" : "The Pillars of Society", "artist" : "Grosz", "year" : 1926, "price" : NumberDecimal("199.99") }
{ "_id" : 2, "title" : "Melancholy III", "artist" : "Munch", "year" : 1902, "price" : NumberDecimal("280.00") }
{ "_id" : 3, "title" : "Dancer", "artist" : "Miro", "year" : 1925, "price" : NumberDecimal("76.04") }
{ "_id" : 4, "title" : "The Great Wave off Kanagawa", "artist" : "Hokusai", "price" : NumberDecimal("167.30") }
{ "_id" : 5, "title" : "The Persistence of Memory", "artist" : "Dali", "year" : 1931, "price" : NumberDecimal("483.00") }
{ "_id" : 6, "title" : "Composition VII", "artist" : "Kandinsky", "year" : 1913, "price" : NumberDecimal("385.00") }
{ "_id" : 7, "title" : "The Scream", "artist" : "Munch", "year" : 1893 } // 注意这里没有price，聚合结果中为Others
{ "_id" : 8, "title" : "Blue Flower", "artist" : "O'Keefe", "year" : 1918, "price" : NumberDecimal("118.42") }
> db.artwork.aggregate( [
   {
     $bucket: {
       groupBy: "$price",
       boundaries: [ 0, 200, 400 ],
       default: "Other",
       output: {
         "count": { $sum: 1 },
         "titles" : { $push: "$title" }
       }
     }
   }
 ] )
{ "_id" : 0, "count" : 4, "titles" : [ "The Pillars of Society", "Dancer", "The Great Wave off Kanagawa", "Blue Flower" ] }
{ "_id" : 200, "count" : 2, "titles" : [ "Melancholy III", "Composition VII" ] }
{ "_id" : "Other", "count" : 2, "titles" : [ "The Persistence of Memory", "The Scream" ] }
  • $bucket + $facet

非常常用！

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
db.artwork.aggregate( [
  {
    $facet: {
      "price": [
        {
          $bucket: {
              groupBy: "$price",
              boundaries: [ 0, 200, 400 ],
              default: "Other",
              output: {
                "count": { $sum: 1 },
                "artwork" : { $push: { "title": "$title", "price": "$price" } }
              }
          }
        }
      ],
      "year": [
        {
          $bucket: {
            groupBy: "$year",
            boundaries: [ 1890, 1910, 1920, 1940 ],
            default: "Unknown",
            output: {
              "count": { $sum: 1 },
              "artwork": { $push: { "title": "$title", "year": "$year" } }
            }
          }
        }
      ]
    }
  }
] )

// 输出
{
  "year" : [
    {
      "_id" : 1890,
      "count" : 2,
      "artwork" : [
        {
          "title" : "Melancholy III",
          "year" : 1902
        },
        {
          "title" : "The Scream",
          "year" : 1893
        }
      ]
    },
    {
      "_id" : 1910,
      "count" : 2,
      "artwork" : [
        {
          "title" : "Composition VII",
          "year" : 1913
        },
        {
          "title" : "Blue Flower",
          "year" : 1918
        }
      ]
    },
    {
      "_id" : 1920,
      "count" : 3,
      "artwork" : [
        {
          "title" : "The Pillars of Society",
          "year" : 1926
        },
        {
          "title" : "Dancer",
          "year" : 1925
        },
        {
          "title" : "The Persistence of Memory",
          "year" : 1931
        }
      ]
    },
    {
      // Includes the document without a year, e.g., _id: 4
      "_id" : "Unknown",
      "count" : 1,
      "artwork" : [
        {
          "title" : "The Great Wave off Kanagawa"
        }
      ]
    }
  ],
      "price" : [
    {
      "_id" : 0,
      "count" : 4,
      "artwork" : [
        {
          "title" : "The Pillars of Society",
          "price" : NumberDecimal("199.99")
        },
        {
          "title" : "Dancer",
          "price" : NumberDecimal("76.04")
        },
        {
          "title" : "The Great Wave off Kanagawa",
          "price" : NumberDecimal("167.30")
        },
        {
          "title" : "Blue Flower",
          "price" : NumberDecimal("118.42")
        }
      ]
    },
    {
      "_id" : 200,
      "count" : 2,
      "artwork" : [
        {
          "title" : "Melancholy III",
          "price" : NumberDecimal("280.00")
        },
        {
          "title" : "Composition VII",
          "price" : NumberDecimal("385.00")
        }
      ]
    },
    {
      // Includes the document without a price, e.g., _id: 7
      "_id" : "Other",
      "count" : 2,
      "artwork" : [
        {
          "title" : "The Persistence of Memory",
          "price" : NumberDecimal("483.00")
        },
        {
          "title" : "The Scream"
        }
      ]
    }
  ]
}

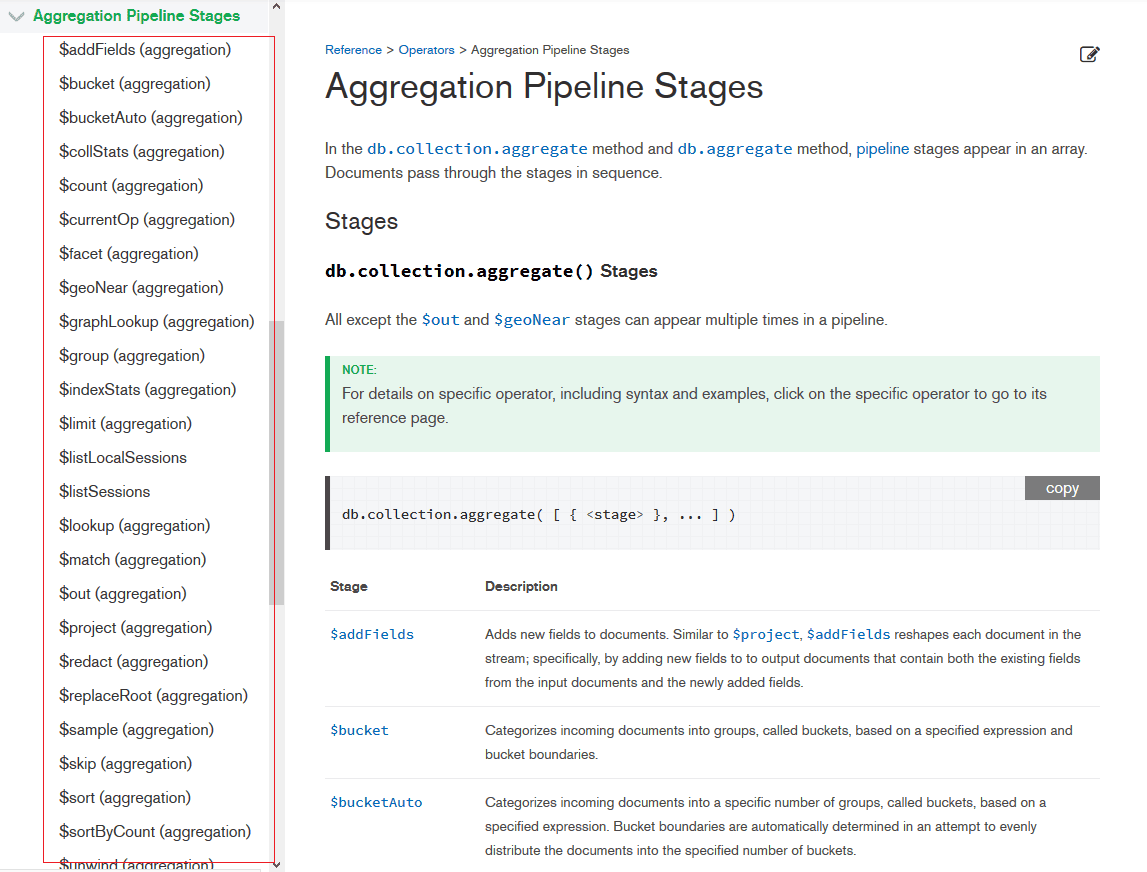

聚合操作使用的比较频繁，在实际的工作中可以参考官方文档 - Aggregation Pipeline Stages (opens new window)。


Aggregation Options参数

举一个explain参数为例，更多的相关Options可以参考官方文档，Aggregrate相关配置 (opens new window)

  • explain
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
> db.orders.aggregate(
                      [
                        { $match: { status: "A" } },
                        { $group: { _id: "$cust_id", total: { $sum: "$amount" } } },
                        { $sort: { total: -1 } }
                      ],
                      {
                        explain: true
                      }
)
{
        "serverInfo" : {
                "host" : "pdai",
                "port" : 27017,
                "version" : "3.6.19",
                "gitVersion" : "41b289ff734a926e784d6ab42c3129f59f40d5b4"
        },
        "stages" : [
                {
                        "$cursor" : {
                                "query" : {
                                        "status" : "A"
                                },
                                "fields" : {
                                        "amount" : 1,
                                        "cust_id" : 1,
                                        "_id" : 0
                                },
                                "queryPlanner" : {
                                        "plannerVersion" : 1,
                                        "namespace" : "testdb.orders",
                                        "indexFilterSet" : false,
                                        "parsedQuery" : {
                                                "status" : {
                                                        "$eq" : "A"
                                                }
                                        },
                                        "winningPlan" : {
                                                "stage" : "COLLSCAN",
                                                "filter" : {
                                                        "status" : {
                                                                "$eq" : "A"
                                                        }
                                                },
                                                "direction" : "forward"
                                        },
                                        "rejectedPlans" : [ ]
                                }
                        }
                },
                {
                        "$group" : {
                                "_id" : "$cust_id",
                                "total" : {
                                        "$sum" : "$amount"
                                }
                        }
                },
                {
                        "$sort" : {
                                "sortKey" : {
                                        "total" : -1
                                }
                        }
                }
        ],
        "ok" : 1
}

聚合 - Map Reduce

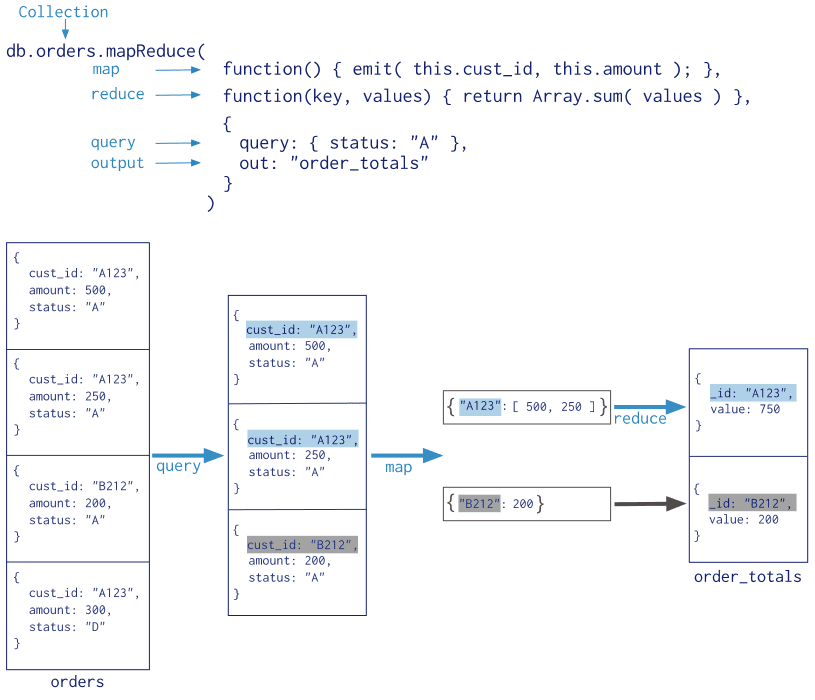

  • 图例理解


官网给了个例子

  • 准备数据
1
2
3
4
5
6
7
8
9
{
     _id: ObjectId("50a8240b927d5d8b5891743c"),
     cust_id: "abc123",
     ord_date: new Date("Oct 04, 2012"),
     status: 'A',
     price: 25,
     items: [ { sku: "mmm", qty: 5, price: 2.5 },
              { sku: "nnn", qty: 5, price: 2.5 } ]
}
  • 计算每个顾客总花费：

map

1
2
3
4
var mapFunction1 = function() {
                       emit(this.cust_id, this.price);
                   };

reduce

1
2
3
4
var reduceFunction1 = function(keyCustId, valuesPrices) {
                          return Array.sum(valuesPrices);
                      };

out

1
2
3
4
5
6
db.orders.mapReduce(
                     mapFunction1,
                     reduceFunction1,
                     { out: "map_reduce_example" }
                   )

  • 计算每个订单中Items的均价

map

1
2
3
4
5
6
7
8
9
10
11
var mapFunction2 = function() {
                       for (var idx = 0; idx < this.items.length; idx++) {
                           var key = this.items[idx].sku;
                           var value = {
                                         count: 1,
                                         qty: this.items[idx].qty
                                       };
                           emit(key, value);
                       }
                    };

reduce

1
2
3
4
5
6
7
8
9
10
11
var reduceFunction2 = function(keySKU, countObjVals) {
                     reducedVal = { count: 0, qty: 0 };

                     for (var idx = 0; idx < countObjVals.length; idx++) {
                         reducedVal.count += countObjVals[idx].count;
                         reducedVal.qty += countObjVals[idx].qty;
                     }

                     return reducedVal;
                  };

finalize

1
2
3
4
5
6
7
8
var finalizeFunction2 = function (key, reducedVal) {

                       reducedVal.avg = reducedVal.qty/reducedVal.count;

                       return reducedVal;

                    };

索引

索引即为提升查询等的效率，默认是对_id进行索引的。

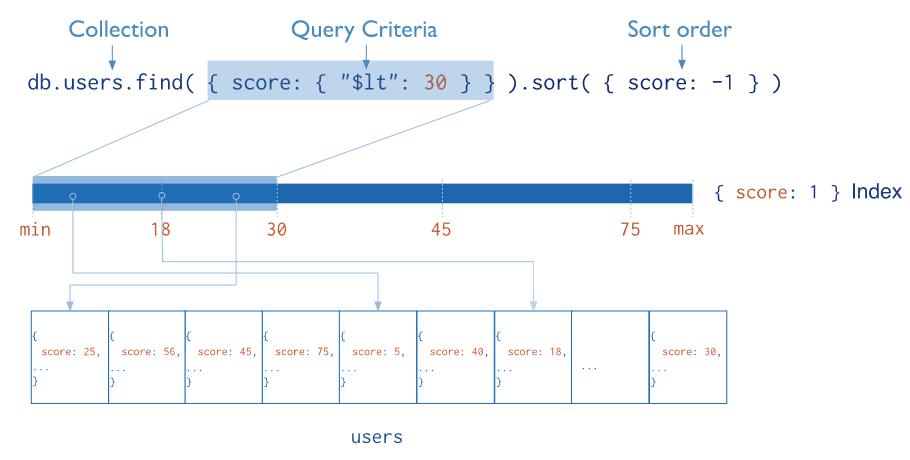

图例理解

以对users中score进行索引时查询的效果


索引的类型

对于索引，这里简单介绍下常用的类型，其它类型和例子可以参考官网文档 - 索引 (opens new window)

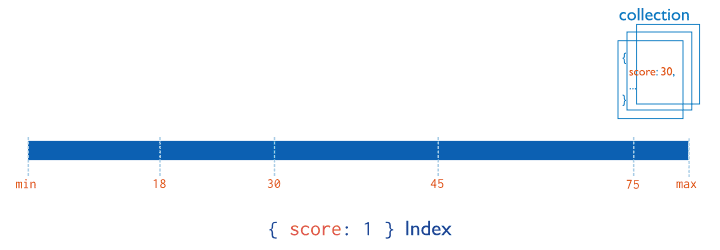

  • 单一索引

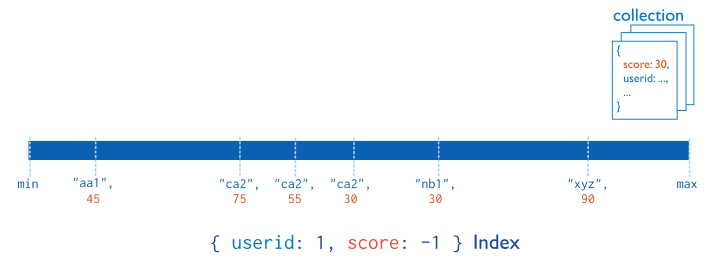

  • 复合索引

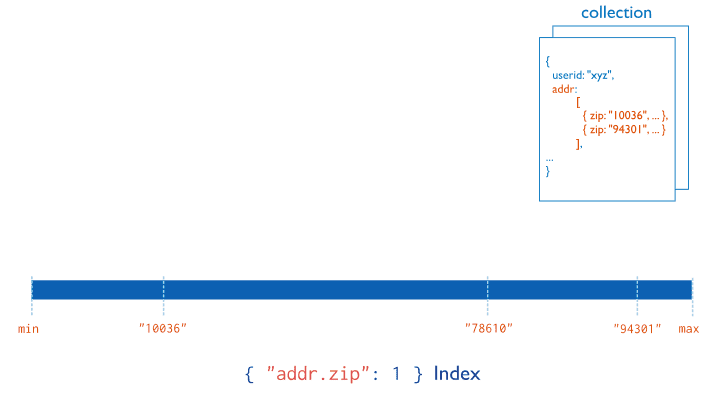

  • 多键索引


对索引的操作

  • 查看集合索引
1
2
db.col.getIndexes()
  • 查看集合索引大小
1
2
db.col.totalIndexSize()
  • 删除集合所有索引
1
2
db.col.dropIndexes()
  • 删除集合指定索引
1
2
db.col.dropIndex("索引名称")
05_数据库 > 05_MongoDB
#数据库 #NoSQL #MongoDB
03-MongoDB索引和聚合
https://janycode.github.io/2022/08/14/05_数据库/05_MongoDB/03-MongoDB索引和聚合/
作者
Jerry(姜源)
发布于
2022年8月14日
许可协议
